    Agriculture Bearing

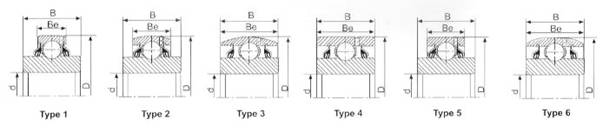

Bearings No. Boundary Dimensions(mm)
d D Be B
W208PPB2 38.113 80 18.000 42.875
W208PPB7 30.175 80 18.000 30.180
W208PP10 38.113 80 21.000 42.875
W208PPB10 38.113 80 21.000 42.875
W208PPB23 38.113 80 30.175 42.875
W209PPB2 45.000 85 30.175 30.175
W209PPB4 39.000 85 30.175 30.175
W210PP2 49.225 90 30.175 30.175
W210PPB2 49.225 90 30.175 30.175
W210PPB5 45.339 90 30.175 30.175
W210PP8 38.862 90 30.175 30.175
W210PPB9 49.400 90 23.000 36.530
W211PP2 55.575 100 33.325 33.325
W211PPB2 55.575 100 33.325 33.325
W211PPB4 55.575 100 33.325 55.500
W214PP2 70.000 125 39.690 39.675
W214PPB2 70.000 125 39.690 39.675
W214PPB9 70.256 125 28.000 44.450
GW209PPB2 45.000 85 30.175 30.175
GW209PPB4 39.000 85 30.175 30.175
GW209PPB11 45.237 85 22.000 36.520
GW210PPB2 49.225 90 30.175 30.175
GW210PPB5 45.339 90 30.175 30.175
GW210PP9 49.403 90 23.000 36.520
GW211PP2 55.575 100 33.325 33.325
GW211PPB2 55.575 100 33.325 33.325
GW211PPB8 55.575 100 25.000 33.325
GW211PPB9 55.575 100 25.000 39.690
GW211PPB10 49.225 100 33.325 33.325
GW211PPB13 45.339 100 25.000 33.325
GW211PPB14 51.181 100 25.000 33.325
GW211PP25 45.212 100 33.325 44.450
GW214PP2 70.000 125 39.690 36.690
GW214PPB2 70.000 125 39.690 39.690
GW214PPB3 49.213 125 39.690 39.690
GW214PPB5 70.000 125 39.690 61.925
GW214PPB6 68.278 125 28.000 68.260
GW315PPB11 70.000 160 68.260 68.260
GW208PPB5 31.394 80 21.000 36.520
GW208PPB6 27.788 80 21.000 36.520
GW208PPB8 31.394 80 30.175 36.520
GW208PP17 31.394 85.75 30.175 36.520
GW208PPB17 31.394 85.75 30.175 36.520
GW209PPB5 34.798 85 30.175 36.520
GW209PPB8 34.798 85 22.000 36.520
GW210PP4 31.394 90 30.175 30.175
GW210PPB4 31.394 90 30.175 30.175
GW211PP3 41.199 100 33.325 33.325
GW211PPB3 41.199 100 33.325 33.325
GW211PP5 41.199 101.6 36.520 44.450
GW211PP17 41.199 100 33.325 44.450
GW211PPB17 41.199 100 33.325 44.450
GW214PPB4 54.899 125 39.675 39.675
GW216PP2 68.200 140 30.000 63.500
W208PP5 31.394 80 18.000 39.520
W208PPB5 31.394 80 18.000 36.520
W208PP6 27.788 80 18.000 36.520
W208PPB6 27.788 80 18.000 36.520
W208PP8 31.394 80 30.175 36.520
W208PPB8 31.394 80 30.175 36.520
W208PPB9 27.788 80 30.175 36.520
W208PP11 24.441 85.75 30.175 36.520
W208PP12 31.394 85.75 30.175 36.520
W208PP13 24.441 80 18.000 36.520
W209PPB5 34.798 85 30.175 36.520
W209PPB7 34.798 85.75 30.175 36.520
W210PP4 31.394 90 30.175 30.175
W210PPB4 31.394 90 30.175 30.175
W210PPB6 31.394 90 30.175 36.520
W211PP3 41.199 100 30.324 33.324
W211PPB3 41.199 100 30.324 33.324
W211PP5 41.199 101.6 36.520 44.450
W211PPB6 41.199 104.78 36.520 44.450
