Please contact STILBearing for more information on any of the below or about sizes not listed as new sizes are constatly becoming available

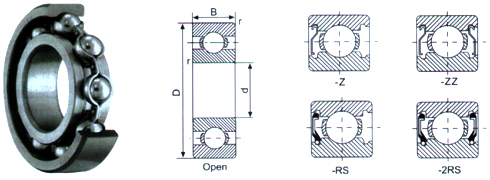

Deep Groove Ball Bearings-- 6000Series

Bearing Type	Principal Dimensions			Basic Load		Limiting speed		Weight
	d	D	B	Cr	Cor
				N		Grease	Oil	kg
	mm					r/min
6000	10	26	8	4620	1960	30000	36000	0.019
6001	12	28	8	5070	2360	26000	32000	0.022
6002	15	32	9	5590	2850	22000	28000	0.03
6003	17	35	10	1050	3250	19000	24000	0.039
6004	20	42	12	9360	5000	17000	20000	0.069
6005	25	47	12	11200	6550	15000	18000	0.08
6006	30	55	13	13300	8300	12000	15000	0.12
6007	35	12	14	15900	10200	10000	13000	0.16
6008	40	68	15	16800	11600	9500	12000	0.19
6009	45	75	16	20800	14600	9000	11000	0.25
6010	50	80	16	21600	16000	8500	10000	0.26
6011	55	90	18	28100	21200	7500	9000	0.39
6012	60	95	18	29600	23200	6700	8000	0.42
6013	65	100	18	30700	25000	6300	7500	0.44
6014	70	110	20	37700	31000	6000	7000	0.6
6015	75	115	20	39700	33500	5600	6700	0.64
6016	80	125	22	47500	40000	5300	6300	0.85
6017	85	130	22	49400	43000	5000	6000	0.89
6018	90	140	24	58500	50000	4800	5600	1.15
6019	95	145	24	60500	54000	4500	5300	1.2
6020	100	150	24	60500	54000	4300	5000	1.25
6021	105	160	26	72800	65500	4000	4800	1.6
6022	110	170	28	81900	73500	3800	4500	1.95
6024	120	180	28	85200	80000	3400	4000	2.05
6026	130	200	33	106000	100000	3200	3800	3.15
6028	140	210	33	111000	108000	3000	3600	3.35
6030	150	225	35	125000	125000	2600	3200	4.8
Note:Bearings with inner diameter<75mm are also available in AISI 440Cstainless steel
