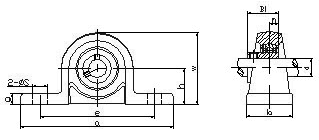

    Pillow Block Bearings-KP000 Series
kp000

Bearing Unit NO. Shaft Dia
d		 Dimensions(mm) Bolt Used Bearing No. Housing No. Weight
(kg)
(mm) h a e b s g w Bi n (mm)
KP000 10 18 67 53 16 7 6 35 14 4 M6 K000 P000 0.17
KP001 12 19 71 56 16 7 6 38 14.5 4 M6 K001 P001 0.2
KP002 15 22 80 63 16 7 7 43 16.5 4.5 M6 K002 P002 0.28
KP003 17 24 85 67 18 7 7 47 17.5 5 M6 K003 P003 0.35
KP004 20 28 100 80 20 10 9 55 21 6 M8 K004 P004 0.51
KP005 25 32 112 90 20 10 10 62 22.5 6 M8 K005 P005 0.66
KP006 30 36 132 106 26 13 11 70 24.5 6.5 M10 K006 P006 1.01
