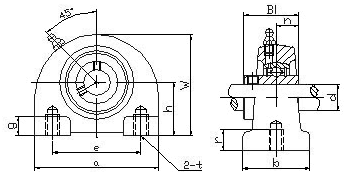

    Pillow Block Bearings-UCPA200 Series
ucpa200

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
h a e b t r g w Bi n (mm)
(in) (mm)
UCPA201-8 1/2   30.2 76 52 38 M10 15 8 62 31 12.7 M10x1.5 UC201-8 PA204 0.42
UCPA202-9 9/16   UC202-9
UCPA202-10 5/8   UC202-10
UCPA203-11 11/16   UC203-11
UCPA204-12 3/4   UC204-12
UCPA201   12 UC201
UCPA202   15 UC202
UCPA203   17 UC203
UCPA204   20 UC204
UCPA205-13 13/16 25 36.5 84 56 38 M10 15 10 72 34.1 14.3 M10x1.5 UC205-13 PA205 0.61
UCPA205-14 7/8 UC205-14
UCPA205-15 15/16 UC205-15
UCPA205-16 1 UC205-16
UCPA205   UC205
UCPA206-17 1-1/16 30 42.9 94 66 48 M14 18 10 84 38.1 15.9 M14x2 UC206-17 PA206 0.93
UCPA206-18 1-1/8 UC206-18
UCPA206-19 1-3/16 UC206-19
UCPA206-20 1-1/4 UC206-20
UCPA206   UC206
UCPA207-20 1-1/4 35 47.6 110 80 48 M14 20 12 95 42.9 17.5 M14x2 UC207-20 PA207 1.21
UCPA207-21 1-5/16 UC207-21
UCPA207-22 1-3/8 UC207-22
UCPA207-23 1-7/16 UC207-23
UCPA207   UC207
UCPA208-24 1-1/2 40 49.2 116 84 54 M14 20 12 100 49.2 19.0 M14x2 UC208-24 PA208 1.47
UCPA208-25 1-9/16 UC208-25
UCPA208   UC208
UCPA209-26 1-5/8 45 54.2 120 90 54 M14 25 12 108 49.2 19.0 M14x2 UC209-26 PA209 1.5
UCPA209-27 1-11/16 UC209-27
UCPA209-28 1-3/4 UC209-28
UCPA209   UC209
UCPA210-29 1-13/16 50 57.2 130 94 60 M16 25 14 116 51.6 19.0 M16x2 UC210-29 PA210 2.0
UCPA210-30 1-7/8 UC210-30
UCPA210-31 1-15/16 UC210-31
UCPA210-32 2 UC210-32
UCPA210   UC210
UCPA211-32 2 55 63.5 140 104 66 M16 25 14 125 55.6 22.2 M16x2 UC211-32 PA211 2.5
UCPA211-33 2-1/16 UC211-33
UCPA211-34 2-1/8 UC211-34
UCPA211-35 2-3/16 UC211-35
UCPA211   UC211
UCPA212-36 2-1/4 60 69.9 150 114 68 M16 25 15 138 65.1 25.4 M16x2 UC212-36 PA212 2.7
UCPA212-37 2-5/16 UC212-37
UCPA212-38 2-3/8 UC212-38
UCPA212-39 2-7/16 UC212-39
UCPA212   UC212
UCPA213-40 2-1/2 65 76.2 160 124 70 M16 25 15 150 65.1 25.4 M16x2 UC213-40 PA213 4.37
UCPA213-41 2-9/16 UC213-41
UCPA213   UC213
