    Pillow Block Bearings-UCPE200 Series

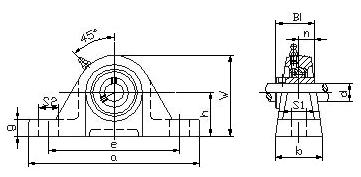

ucpe200

BearingUint No. Shaft Dia d Dimensinons(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
h a e b S2 S1 g w Bi n (mm) (in)
(in) (mm)
UCPE201-8 1/2   30.2 124 95 31 15 11 14 57.1 26 10 M8 5/16 UCW201-8 PE203 0.45
UCPE202-9 9/16   UCW202-9
UCPE202-10 5/8   UCW202-10
UCPE203-11 11/16   UCW203-11
UCPE201   12 UCW201
UCPE202   15 UCW202
UCPE203   17 UCW203
UCPE204-12 3/4   33.3 127 95 38 16 13 15 65 31 12.7 M10 3/8 UC204-12 PE204 0.65
UCPE204   20 UC204
UCPE205-13 13/16 25 36.6 140 105 38 16 13 16 70 34 14.3 M10 3/8 UC205-13 PE205 0.75
UCPE205-14 7/8 UC205-14
UCPE205-15 15/16 UC205-15
UCPE205-16 1 UC205-16
UCPE205   UC205
UCPE206-17 1-1/16 30 42.9 165 121 48 21 17 18 83 38.1 15.9 M14 1/2 UC206-17 PE206 1.15
UCPE206-18 1-1/8 UC206-18
UCPE206-19 1-3/16 UC206-19
UCPE206-20 1-1/4 UC206-20
UCPE206   UC206
UCPE207-20 1-1/4 35 47.6 167 127 48 21 17 19 94 42.9 17.5 M14 1/2 UC207-20 PE207 1.30
UCPE207-21 1-5/16 UC207-21
UCPE207-22 1-3/8 UC207-22
UCPE207-23 1-7/16 UC207-23
UCPE207   UC207
UCPE208-24 1-1/2 40 49.2 184 137 54 25 17 19 100 49.2 19.0 M14 1/2 UC208-24 PE208 1.50
UCPE208-25 1-9/16 UC208-25
UCPE208   UC208
UCPE209-26 1-5/8 45 54 190 146 54 25 17 20 108 49.2 19.0 M14 1/2 UC209-26 PE209 1.75
UCPE209-27 1-11/16 UC209-27
UCPE209-28 1-3/4 UC209-28
UCPE209   UC209
UCPE210-29 1-13/16 50 57.2 206 159 60 25 20 22 114 51.6 19.0 M16 5/8 UC210-29 PE210 2.35
UCPE210-30 1-7/8 UC210-30
UCPE210-31 1-15/16 UC210-31
UCPE210-32 2 UC210-32
UCPE210   UC210
UCPE211-32 2 55 63.5 219 171 60 25 20 22 126 55.6 22.2 M16 5/8 UC211-32 PE211 2.60
UCPE211-33 2-1/16 UC211-33
UCPE211-34 2-1/8 UC211-34
UCPE211-35 2-3/16 UC211-35
UCPE211   UC211
UCPE212-36 2-1/4 60 69.8 241 184 70 25 20 25 138 65.1 25.4 M16 5/8 UC212-36 PE212 4.00
UCPE212-37 2-5/16 UC212-37
UCPE212-38 2-3/8 UC212-38
UCPE212-39 2-7/16 UC212-39
UCPE212   UC212
UCPE213-40 2-1/2 65 76.2 265 203 70 29 25 27 150 65.1 25.4 M20 3/4 UC213-40 PE213 4.77
UCPE213-41 2-9/16 UC213-41
UCPE213   UC213
UCPE214-42 2-5/8 70 79.4 266 210 72 31 25 27 156 74.6 30.2 M20 3/4 UC214-42 PE214 5.30
UCPE214-43 2-11/16 UC214-43
UCPE214-44 2-3/4 UC214-44
UCPE214   UC214
UCPE215-45 2-13/16 75 82.6 275 217 74 31 25 28 163 77.8 33.3 M20 3/4 UC215-45 PE215 6.00
UCPE215-46 2-7/8 UC215-46
UCPE215-47 2-15/16 UC215-47
UCPE215-48 3 UC215-48
UCPE215   UC215
