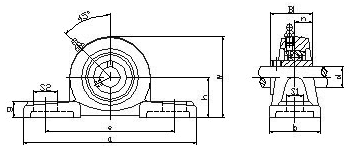

    Pillow Block Bearings-UCPW200 Series
ucpx00

Bearing Unit NO. Shaft Dia d Dimensions(mm) Bolt Used Bearing No. Housing No. Housing
Wt (kg)
(in) (mm) h a e b s2 s1 g w Bi n (in) (mm)
UCPX05-16
UCPX05		 1
 25 44.4 159 119 51 25 17 18 85 38.1 15.9 1/2 M14 UCX05-16
UCX05		 PX05 1.02
UCPX06-19
UCPX06-20
UCPX06		 1-3/16
1-1/4
 30 47.6 175 127 57 25 17 20 94 42.9 17.5 1/2 M14 UCX06-19
UCX06-20
UCX06		 PX06 1.33
UCPX07-22
UCPX07-23
UCPX07		 1-3/8
1-7/16
 35 54 203 144 57 30 17 22 105 49.2 19 1/2 M14 UCX07-22
UCX07-23
UCX07		 PX07 1.71
UCPX08-24
UCPX08		 1-1/2
 40 58.7 222 156 67 32 20 26 113 49.2 19 5/8 M16 UCX08-24
UCX08		 PX08 2.09
UCPX09-26
UCPX09-27
UCPX09-28
UCPX09		 1-5/8
1-11/16
1-3/4
 45 58.7 222 156 67 33 20 26 116 51.6 19 5/8 M16 UCX09-26
UCX09-27
UCX09-28
UCX09		 PX09 2.3
UCPX10-31
UCPX10-32
UCPX10		 1-15/16
2
 50 63.5 241 171 73 36 20 27 126 55.6 22.2 5/8 M16 UCX10-31
UCX10-32
UCX10		 PX10 2.85
UCPX11-35
UCPX11		 2-3/16
 55 69.8 260 184 79 36 25 30 139 65.1 25.4 3/4 M20 UCX11-35
UCX11		 PX11 4.04
UCPX12-38
UCPX12-39
UCPX12		 2-3/8
2-7/16
 60 76.2 286 203 83 41 25 32 151 65.1 25.4 3/4 M20 UCX12-38
UCX12-39
UCX12		 PX12 4.85
UCPX13-40
UCPX13		 2-1/2
 65 76.2 286 203 83 41 25 32 154 74.6 30.2 3/4 M20 UCX13-40
UCX13		 PX13 5
UCPX14-44
UCPX14		 2-3/4
 70 88.9 330 229 89 51 27 35 172 77.8 33.3 7/8 M22 UCX14-44
UCX14		 PX14 7.12
UCPX15-47
UCPX15-48
UCPX15		 2-15/16
3
 75 88.9 330 229 89 51 27 35 177 82.6 33.3 7/8 M22 UCX15-47
UCX15-48
UCX15		 PX15 6.65
UCPX16-50
UCPX16		 3-1/8
 80 101.6 381 283 102 59 27 42 197 85.7 34.1 7/8 M22 UCX16-50
UCX16		 PX16 9.5
UCPX17-52
UCPX17		 3-1/4
 85 101.6 381 283 102 59 27 42 202 96 39.7 7/8 M22 UCX17-52
UCX17		 PX17 10.64
UCPX18-56
UCPX18		 3-1/2
 90 101.6 381 283 111 60 27 45 206 104 42.9 7/8 M22 UCX18-56
UCX18		 PX18 11.5
UCPX20-63
UCPX20-64
UCPX20		 3-15/16
4
 100 127 432 337 121 64 33 52 250 117.5 49.2 1-1/8 M30 UCX20-63
UCX20-64
UCX20		 PX20 19.76
