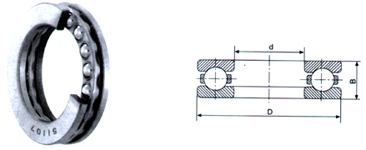

    Thrust Ball Bearings-51100 Series

Bearing Type Principal Dimensions Basic Load Limiting speed 　 Weight
d D B Cr Cor Grease Oil kg
mm N r/min 　
51100 10 24 9 8710 122000 7000 9500 0.02
51101 12 26 9 10400 16600 6700 9000 0.022
51102 15 28 9 9360 15300 6300 8500 0.023
51103 17 30 9 9750 16600 6300 8500 0.025
51104 20 35 10 12700 22800 5600 7500 0.038
51105 25 42 11 15900 31500 4800 6300 0.056
51106 30 47 11 16800 36000 4500 6000 0.063
51107 35 52 12 17400 40500 4300 5600 0.08
51108 40 60 13 23400 55000 3800 5000 0.12
51109 45 65 14 24200 61000 3400 4500 0.14
51110 50 70 14 25500 68000 3200 4300 0.16
51111 55 78 16 30700 85000 2800 3800 0.23
51112 60 85 17 36400 102000 2600 3600 0.2
51113 65 90 18 37100 108000 2400 3400 0.33
51114 70 95 18 37700 112000 2400 3400 0.35
51115 75 100 19 44200 146000 2200 3200 0.4
51116 80 105 19 44900 153000 2000 3000 0.42
51117 85 110 19 46200 163000 2000 3000 0.44
51118 90 120 22 59200 208000 1800 2600 0.67
51120 100 135 25 85200 290000 1700 2400 0.97
51122 110 145 25 87100 315000 1600 2200 1.05
51124 120 155 25 88400 335000 1600 2200 1.15
51126 130 170 30 111000 425000 1400 1900 1.85
51128 140 180 31 111000 440000 1300 1800 20.5
51130 150 190 31 111000 440000 1700 1700 2.2
