Combined Bearings for Steel Sections |
|
|
|
|

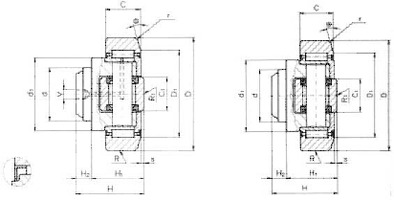

Parts Drawings |
|
Execution ZZ (Relubricable) |
Execution 2RS (sealed) |
|
|
Raw Materials |
Outer Rings |
Steel UNI 16NiCr4 casehardened and tempered Final surface hardness 62+/-2 Hrc |
Inner Rings |
Steel UNI 100Cr6 hardened and tempered Final surface hardness 62+/-2Hrc |
Rolling Elements |
Steel UNI 100Cr6 hardened and tempered Final hardness 62+/-1Hrc |
Main Stud |
Fe52C annealed to be easily welded |
|
Technical Sheet |
Bearings |
Dimensions |
Load ratings |
Speed |
Mass |
ZZ |
2RS |
d
mm |
D
mm |
C
mm |
H
mm |
H1
mm |
H2
mm |
D1
mm |
C2
mm |
d1
mm |
s
mm |
@
Degree |
r
mm |
R
mm |
R1
mm |
V
mm |
C
CN |
C0
CN |
CA
CN |
C0A
CN |
Grease
rev./min |
Kg |
MR.
706(1) |
|
30 |
52.5 |
19 |
33 |
27 |
6 |
43 |
16 |
40 |
2.5 |
10° |
3 |
500 |
500 |
|
24.5 |
32.5 |
6 |
6 |
800 |
0.39 |
MR.
001(1) |
MR.
021(1) |
30 |
62 |
20 |
37.5 |
30.5 |
7 |
50 |
20 |
42 |
2 |
20° |
3 |
500 |
500 |
|
31 |
35.5 |
11 |
11.5 |
900 |
0.52 |
MR.
002(1) (3) |
MR.
022 |
35 |
70.1 |
23 |
44 |
36 |
8 |
57 |
22 |
48 |
2 |
20° |
3 |
500 |
500 |
M6X1(1) |
45.5 |
51 |
14 |
13 |
900 |
0.78 |
MR.
003 |
MR.
023 |
40 |
77.7 |
23 |
48 |
36.5 |
11.5 |
61 |
24 |
54 |
2.5 |
20° |
3 |
700 |
700 |
M6X1 |
48 |
56.8 |
18 |
18 |
800 |
1.02 |
MR.
005 |
MR.
025 |
45 |
88.9 |
30 |
57 |
44 |
13 |
68 |
26 |
59 |
3 |
20° |
4 |
700 |
700 |
M6X1 |
68 |
72 |
23 |
23 |
700 |
1.61 |
MR.
007 |
MR.
027 |
60 |
107.7 |
31 |
69 |
55 |
14 |
82 |
34 |
71 |
3.5 |
20° |
4 |
700 |
700 |
M6X1 |
81 |
95 |
31 |
36 |
650 |
2.69 |
MR.
009 |
MR.
029 |
60 |
123 |
37 |
72.3 |
56 |
16.3 |
92 |
40 |
80 |
4.5 |
20° |
4 |
1000 |
1000 |
M6X1 |
110 |
132 |
43 |
50 |
500 |
3.88 |
MR.
010 |
MR.
030 |
60 |
149 |
43 |
78.5 |
58.5 |
20 |
116 |
50 |
103 |
4.5 |
15° |
4 |
1000 |
1000 |
M6X1 |
151 |
192 |
68 |
71 |
400 |
6.65 |
MR.
191 |
|
60 |
149 |
45 |
86 |
67 |
19 |
120 |
50 |
107 |
5 |
15° |
4 |
1000 |
1000 |
1/8GAS |
151 |
192 |
68 |
71 |
400 |
7.15 |
(1) Non relubricable |
(2) Bearing O.D. 62.5mm on request designation MR.430 |
(3) Relubricable bearing on request designation MR.1195 |
|
|
|
|
|
