Yoke Type Track Rollers With Cylindrical Roller and Ball Cages for Stainless Steel Sheet

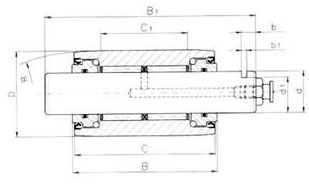

Parts Drawings

Raw Materials

Outer Rings

Steel UNI 16NiCr4 casehardened and tempered Final surface hardness 62+/-2 Hrc

Inner Rings

Steel UNI 100Cr6 hardened and tempered Final surface hardness 62+/-2Hrc

Thrust Washer

Steel UNI 18NiCrMo5 casehardened and tempere Final surface hardness 62+/-2 Hrc

Rolling Elements

Steel UNI 100Cr6 hardened and tempered Final hardness 62+/-2Hrc

Technical Sheet

Bearing	Dimensions										Load ratings				Speed
Bearing	d mm	D mm	C mm	B mm	B1 mm	C1 mm	b mm	b1 mm	d1 mm	R mm	C KN	C0 KN	CW KN	Cow KN	Grease rev./min
MRSC.0012	12	25.5	30	32	61.5	25	4.5	2	9	140	9	15	8	13	4500
MRSC.0014	14	27	41	4	75	25	5	2.5	11	140	13.5	20	11.5	17	4500
MRSC.0015	15	31	44	46	77	38	6	2.5	12	145	18	23	16	21	4500
MRSC.0016	15	31	46	48	82	38	6	2.5	12	145	18	23	16	21	4500
MRSC.0017	18	33	57	58	90	39	5	2.5	15	145	20	37	17	30	4300
MRSC.0018	18	36	62	64	95	34	6	2.5	15	145	25	46	22	44	4000
MRSC.0019	20	41	48	50	81	40	6	2.5	17	50	34	52	30	46	2000
MRSC.0020	20	41	68	70	110	42	7	2.5	17	145	40	68	35	62	1200
MRSC.0023	25	48	58	60	95	48	6	2.5	22	145	40	75	35	64	1000
MRSC.0024	25	48	83	85	133	59	7	2.5	22	180	66	112	52	90	1000
MRSC.0025	25	52	78	80	138	60	7	3	22	180	79	124	56	102	1000
MRSC.0026	28	52	69	72	110	55	7	3	25	180	45	110	39	100	1000
MRSC.0028	30	56	83	85	133	59	7	3	27	180	67	132	53	102	750
MRSC.0029	30	60	57	58.5	99.5	46	10	5	27	180	62	109	47	99	1000
MRSC.0030	32	63	83	85	133	51	7	3	27	180	75	118	63	105	600
MRSC.0032	32	66	103	105	178	93	7	3	29	180	104	130	74	108	400
MRSC.0050	50	83	128	130	190	94	9	4	45.5	180	120	300	88	212	400
