Combined Bearings for Inclined Steel Sections |
|
|
|
|

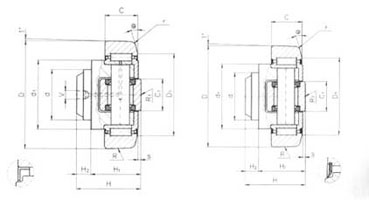

Parts Drawings |
|
Execution ZZ (Relubricable) |
Execution 2RS (sealed) |
|
|
Raw Materials |
Outer Rings |
Steel UNI 16NiCr4 casehardened and tempered Final surface hardness 62+/-2 Hrc |
Inner Rings |
Steel UNI 100Cr6 hardened and tempered Final surface hardness 62+/-2Hrc |
Rolling Elements |
Steel UNI 100Cr6 hardened and tempered Final hardness 62+/-1Hrc |
Main Stud |
Fe52C annealed to be easily welded |
|
Technical Sheet |
Bearings |
Dimensions |
Load ratings |
Speed |
Mass |
ZZ |
2RS |
d
mm |
D
mm |
C
mm |
H
mm |
H1
mm |
H2
mm |
D1
mm |
C2
mm |
d1
mm |
s
mm |
@
Degree |
r
mm |
R
mm |
R1
mm |
V
mm |
C
CN |
C0
CN |
CA
CN |
C0A
CN |
Grease
rev./min |
Kg |
MR.031(1) |
MR.032 |
35 |
70.35 |
23 |
40.5 |
30.5 |
10 |
57 |
22 |
48 |
2.5 |
20° |
4 |
650 |
500 |
|
45.5 |
51 |
14 |
13 |
900 |
0.74 |
MR.004 |
MR.024 |
40 |
78.3 |
23 |
40.7 |
29 |
11.7 |
61 |
24 |
54 |
2.5 |
20° |
4 |
700 |
700 |
M6X1 |
48 |
56.8 |
18 |
18 |
800 |
0.88 |
MR.034 |
MR.035 |
45 |
89.25 |
30 |
50 |
37.5 |
12.5 |
68 |
26 |
59 |
3 |
20° |
4 |
850 |
700 |
M6X1 |
68 |
72 |
23 |
23 |
800 |
1.58 |
MR.006 |
MR.026 |
50 |
101.9 |
28 |
46 |
33 |
13 |
77 |
30 |
67 |
2.5 |
20° |
4 |
850 |
700 |
M6X1 |
73 |
82 |
25 |
27 |
700 |
1.72 |
MR.008 |
MR.028 |
55 |
108.55 |
31 |
53 |
39 |
14 |
82 |
34 |
71 |
3.5 |
20° |
4 |
1000 |
700 |
M6X1 |
81 |
95 |
31 |
36 |
700 |
2.22 |
MR.040 |
MR.041 |
60 |
123.5 |
33 |
57 |
42 |
15 |
94 |
40 |
78 |
2.5 |
15° |
4 |
1000 |
750 |
M6X1 |
105 |
108 |
32 |
39 |
500 |
3.2 |
MR.016(2) |
|
60 |
129.4 |
33 |
56.5 |
42.5 |
14 |
94 |
40 |
78 |
2.5 |
10° |
4 |
1000 |
750 |
M6X1 |
105 |
108 |
32 |
39 |
500 |
3.4 |
MR.011(2) |
|
60 |
165 |
36 |
61 |
46 |
15 |
130 |
60 |
113 |
3 |
10° |
4 |
1000 |
1000 |
M6X1 |
125 |
181 |
46 |
61 |
400 |
6.3 |
|
(1) Non relubricable |
(2) Non taper outer Profile(D) |
|
|
|
|
