Combined Bearings for Heavy Loads Adjustable from Ourside for Steel Sections |
|
|
|
|

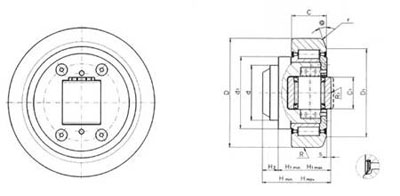

Parts Drawings |
|
|
Execution.2RS (sealed) |
|
|
Raw Materials |
Outer Rings |
Steel UNI 16NiCr4 casehardened and tempered Final surface hardness 62+/-2 Hrc |
Inner Rings |
Steel UNI 100Cr6 hardened and tempered Final surface hardness 62+/-2Hrc |
Rolling Elements |
Steel UNI 100Cr6 hardened and tempered Final hardness 62+/-2Hrc |
Eccentric Stud |
Steel UNI 16CrNi4 casehardened and tempered. Final surface hardness 62+/-2HRc |
Main Stud |
Fe52C annealed to be easily welded |
|
Technical Sheet |
Bear
ings |
Dimensions |
Load ratings |
Speed |
Mass |
2RS |
d
mm |
D
mm |
C
mm |
H min
mm |
H max
mm |
H1 min
mm |
H1 max
mm |
H2
mm |
D1
mm |
C1
mm |
d1
mm |
S
mm |
@
Degree |
r
mm |
R
mm |
R1
mm |
C
CN |
C0
CN |
CA
CN |
C0A
CN |
Grease
rev./min |
Kg |
MR.
038A |
80 |
165 |
40 |
69 |
72 |
53 |
56 |
16 |
130 |
50 |
113 |
8 |
15° |
3 |
1000 |
1000 |
190 |
230 |
68 |
71 |
120 |
9.2 |
MR.
012A |
100 |
190 |
48 |
84.5 |
87.5 |
64.5 |
67.5 |
20 |
160 |
60 |
124 |
6.5 |
15° |
4 |
1000 |
1500 |
207 |
243 |
73 |
83 |
100 |
10.6 |
MR.
013A |
110 |
220 |
58 |
94.5 |
97.5 |
74.5 |
77.5 |
20 |
190 |
75 |
145 |
6.5 |
15° |
4 |
1500 |
2000 |
313 |
387 |
105 |
136 |
90 |
17.3 |
MR.
014A |
120 |
250 |
60 |
102 |
105 |
77 |
80 |
25 |
220 |
75 |
168 |
7 |
15° |
4 |
1500 |
2000 |
327 |
434 |
105 |
136 |
70 |
23.9 |
MR.
015A |
150 |
280 |
72 |
119.5 |
123.5 |
89.5 |
93.5 |
30 |
250 |
90 |
188 |
7.5 |
15° |
4 |
2000 |
3000 |
421 |
625 |
144 |
210 |
55 |
36 |
|
(1) Taper outer (D) Profile |
|
|
|
|
