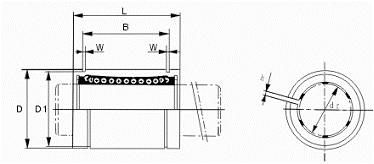

| Linear Bearing-LM Series |
|
|
 |
|
| |
Bearing
Number |
No. of
ball Tracks |
Dimensions |
Roundness
(0.001mm) |
Load Rating |
Weight
(kg) |
dr (mm)
tolerance |
D(mm)
tolerance |
L(mm)
tolerance |
B(mm)
tolerance |
D1
(mm) |
W
(mm) |
Dynamic
C(N) |
Static
Co(N) |
| LM 5 |
4 |
5
0 ~ -0.008 |
10
0 ~ -0.009 |
15
0 ~ -0.2 |
10.2
0 ~ -0.2 |
9.6 |
1.10 |
8 |
17 |
21 |
0.0040 |
| LM 6 |
4 |
6
0 ~ -0.009 |
12
0 ~ -0.011 |
19
0 ~ -0.2 |
13.5
0 ~ -0.2 |
11.5 |
1.10 |
12 |
21 |
27 |
0.0080 |
| LM8S |
4 |
8
0 ~ -0.009 |
15
0 ~ -0.011 |
17
0 ~ -0.2 |
11.5
0 ~ -0.2 |
14.3 |
1.10 |
12 |
18 |
23 |
0.0110 |
| LM8 |
4 |
8
0 ~ -0.009 |
15
0 ~ -0.011 |
24
0 ~ -0.2 |
17.5
0 ~ -0.2 |
14.3 |
1.10 |
12 |
27 |
41 |
0.0160 |
| LM10 |
4 |
10
0 ~ -0.009 |
19
0 ~ -0.013 |
29
0 ~ -0.2 |
22.0
0 ~ 0.2 |
18.0 |
1.30 |
12 |
38 |
56 |
0.0300 |
| LM12 |
4 |
12
0 ~ -0.009 |
21
0 ~ -0.013 |
30
0 ~ -0.2 |
23.0
0 ~ -0.2 |
20.0 |
1.30 |
12 |
42 |
61 |
0.3150 |
| LM13 |
4 |
13
0 ~ -0.009 |
23
0 ~ -0.013 |
32
0 ~ -0.2 |
23.0
0 ~ -0.2 |
22.0 |
1.30 |
12 |
52 |
79 |
0.0430 |
| LM16 |
5 |
16
0 ~ -0.009 |
28
0 ~ -0.013 |
37
0 ~ -0.2 |
26.5
0 ~ -0.2 |
27.0 |
1.60 |
12 |
79 |
120 |
0.0690 |
| LM20 |
5 |
20
0 ~ -0.010 |
32
0 ~ -0.016 |
42
0 ~ -0.2 |
30.5
0 ~ -0.2 |
30.5 |
1.60 |
15 |
88 |
140 |
0.0870 |
| LM25 |
6 |
25
0 ~ -0.010 |
40
0 ~ -0.016 |
59
0 ~ -0.3 |
41.0
0 ~ -0.3 |
38.0 |
1.85 |
15 |
100 |
160 |
0.2200 |
| LM30 |
6 |
30
0 ~ -0.010 |
45
0 ~ -0.016 |
64
0 ~ -0.3 |
44.5
0 ~ -0.3 |
43.0 |
1.85 |
15 |
160 |
280 |
0.2500 |
| LM35 |
6 |
35
0 ~ -0.012 |
52
0 ~ -0.016 |
70
0 ~ -0.3 |
49.5
0 ~ -0.3 |
49.0 |
2.10 |
20 |
170 |
320 |
0.3900 |
| LM40 |
6 |
40
0 ~ -0.012 |
60
0 ~ -0.016 |
80
0 ~ -0.3 |
60.5
0 ~ -0.3 |
57.0 |
2.10 |
20 |
220 |
410 |
0.5850 |
| LM50 |
6 |
50
0 ~ -0.012 |
80
0 ~ -0.019 |
100
0 ~ -0.3 |
74
0 ~ -0.3 |
76.5 |
2.60 |
20 |
390 |
810 |
1.5800 |
| LM60 |
6 |
60
0 ~ -0.015 |
90
0 ~ -0.019 |
110
0 ~ -0.3 |
85
0 ~ -0.3 |
86.5 |
3.15 |
25 |
480 |
1020 |
2.0000 |
|
|
|
|
