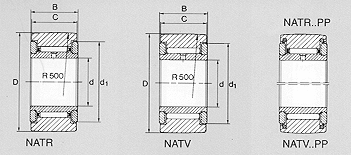

    Yoke Type Track Rollers-NATR, NATV Series
NATR, NATV Series

Outside Diameter Bearing Designations and Masses Boundary Dimensions Basic Load Rating Limiting Speed (Grease)
Without seal Mass Sealed Mass d D B C d1 Cr Dynamic Cor Static Cw Cow
mm g g mm N rpm
16 NATR 5 14 NATR 5 PP 14 5 16 12 11 12 3 050 3 000 2 050 2 400 22 000
NATV 5 15 NATV 5 PP 15 5 16 12 11 12 4 500 6 300 3 680 4 300 8 500
19 NATR 6 20 NATR 6 PP 20 6 19 12 11 14 3 600 3 650 2 450 2 850 20 000
NATV 6 21 NATV 6 PP 21 6 19 12 11 14 5 700 8 700 4 600 6 750 7 000
24 NATR 8 41 NATR 8 PP 41 8 24 15 14 19 4 500 5 400 3 900 4 500 5 000
NATV 8 42 NATV 8 PP 42 8 24 15 14 19 8 600 12 000 6 700 9 800 5 500
30 NATR 10 64 NATR 10 PP 64 10 30 15 14 23 6 100 7 800 4 500 6 900 11 000
NATV 10 65 NATV 10 PP 65 10 30 15 14 23 10 900 17 000 7 600 11 800 4 500
32 NATR 12 71 NATR 12 PP 71 12 32 15 14 25 6 600 9 800 4 660 7 000 9 000
NATV 12 72 NATV 12 PP 72 12 32 15 14 25 11 800 19 000 7 800 13 000 3 900
35 NATR 15 103 NATR 15 PP 103 15 35 19 18 27 10 500 17 500 7 800 11 500 7 000
NATV 15 105 NATV 15 PP 105 15 35 19 18 27 16 000 32 500 10 200 20 500 3 400
40 NATR 17 144 NATR 17 PP 144 17 40 21 20 32 11 800 19 400 9 500 13 500 6 000
NATV 17 152 NATV 17 PP 152 17 40 21 20 32 19 600 37 000 1 200 23 000 2 900
47 NATR 20 246 NATR 20 PP 246 20 47 25 24 37 17 500 29 800 13 500 22 500 4 900
NATV 20 254 NATV 20 PP 254 20 47 25 24 37 25 800 57 000 19 000 39 500 2 600
52 NATR 25 275 NATR 25 PP 275 25 52 25 24 42 19 500 36 500 13 400 23 500 3 600
NATV 25 285 NATV 25 PP 285 25 52 25 24 42 29 000 69 600 19 800 40 900 2 100
62 NATR 30 470 NATR 30 PP 470 30 62 29 28 51 31 000 57 500 20 900 35 500 2 600
NATV 30 481 NATV 30 PP 481 30 62 29 28 51 45 500 104 000 27 800 60 900 1 700
72 NATR 35 635 NATR 35 PP 635 35 72 29 28 58 34 500 67 500 22 500 41 000 2 000
NATV 35 647 NATV 35 PP 647 35 72 29 28 58 50 800 109 500 30 900 70 800 1 400
80 NATR 40 805 NATR 40 PP 805 40 80 32 30 66 47 000 91 500 30 900 56 500 1 700
NATV 40 890 NATV 40 PP 890 40 80 32 30 66 64 000 139 000 39 800 87 800 1 300
85 NATR 45 910 NATR 45 PP 910 45 85 32 30 72 49 100 98 000 30 600 56 900 1 500
90 NATR 50 960 NATR 50 PP 960 50 90 32 30 76 50 500 10 600 30 600 57 500 1 300
NATV 50 990 NATV 50 PP 990 50 90 32 30 76 69 500 187 000 38 700 90 900 1 000
