Home >> Product Center >> Oil-less Slide Bearings
Welcome new and old customers to choose our products!

Please contact STILBearing for more information on any of the below or about sizes not listed as new sizes are constatly becoming available

Tel: 86-510-82726643
Fax: 86-510-68930187
E-mail: stlpt@vip.163.com

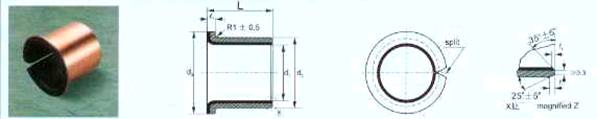

    Standard Series of SF-1F Flanged Bush
Standard Series of SF-1F Flanged Bush
Axle Dia Designations size
d1 d2 d3
±0.5		 b
±0.25		 b1
-0.2
 f1 f2
6 SF-1F 06040
SF-1F 06070		 6
6		 8
8		 12
12		 4
7		 1
1		 0.5
 0.4
8 SF-1F 08055
SF-1F 08075		 8
8		 10
10		 15
15		 5.5
7.5		 1
1		 　 　
10 SF-1F 10070
SF-1F 10090
SF-1F 10120		 10
10
10		 12
12
12		 18
18
18		 7
9
12		 1
1
1		 　 　
12 SF-1F 12070
SF-1F 12090
SF-1F 12120		 12
12
12		 14
14
14		 20
20
20		 7
9
12		 1
1
1		 　 　
14 SF-1F 14120
SF-1F 14170		 14
14		 16
16		 22
22		 12
17		 1
1		 　 　
15 SF-1F 15090
SF-1F 15120
SF-1F 15170		 15
15
15		 17
17
17		 23
23
23		 9
12
17		 1
1
1		 　 　
16 SF-1F 16120
SF-1F 16170		 16
16		 18
18		 24
25		 12
17		 1
1		 　 　
18 SF-1F 18120
SF-1F 18170
SF-1F 18200		 18
18
18		 20
20
20		 26
26
26		 12
17
20		 1
1
1		 0.8

 0.4
20 SF-1F 20115
SF-1F 20165
SF-1F 20215		 20
20
20		 23
23
23		 30
30
30		 11.5
16.5
21.5		 1.5
1.5
1.5		 　 　
22 SF-1F 22150
SF-1F 22200		 22
22		 25
25		 32
32		 15
20		 1.5
1.5		 　 　
25 SF-1F 25115
SF-1F 25165
SF-1F 25215		 25
25
25		 28
28
28		 35
35
35		 11.5
16.5
21.5		 1.5
1.5
1.5		 1.0

 0.5
30 SF-1F 30160
SF-1F 30260		 30
30		 34
34		 42
42		 16
26		 2
2		 　 　
35 SF-1F 35160
SF-1F 35260		 35
35		 39
39		 47
47		 16
26		 2
2		 　 　
40 SF-1F 40260
SF-1F 40400		 40
40		 44
44		 53
53		 26
40		 2
2
