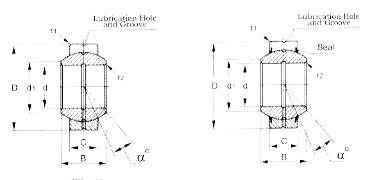

     Radial -GEEW-ES GEZ…ES series
GEZ…ES GEZ…ES-2RS
Steel/Steel
BEARING NO. PRINCIPAL DIMENSIONS(INCH) α° STATIC
LOAD(KN)
d D C B d1 r1 r2 ≈
GEZ12ES GEZ12ES-2RS 0.5000 0.8750 0.375 0.437 0.551 0.020 0.032 6 8095
GEZ15ES GEZ15ES-2RS 0.6250 1.0625 0.469 0.547 0.703 0.020 0.040 6 13075
GEZ19ES GEZ19ES-2RS 0.7500 1.2500 0.562 0.656 0.844 0.032 0.040 6 18825
GEZ22ES GEZ22ES-2RS 0.8750 1.4375 0.656 0.765 0.974 0.032 0.040 6 24410
GEZ25ES GEZ25ES-2RS 1.0000 1.6250 0.750 0.875 1.103 0.032 0.040 6 33350
GEZ31ES GEZ31ES-2RS 1.2500 2.0000 0.937 1.093 1.382 0.032 0.040 6 51750
GEZ34ES GEZ34ES-2RS 1.3750 2.1875 1.031 1.187 1.516 0.032 0.040 6 59900
GEZ38ES GEZ38ES-2RS 1.5000 2.4375 1.125 1.312 1.703 0.032 0.040 6 74500
GEZ44ES GEZ44ES-2RS 1.7500 2.8125 1.312 1.531 1.984 0.032 0.040 6 102100
GEZ50ES GEZ50ES-2RS 2.0000 3.1875 1.500 1.750 2.266 0.040 0.048 6 132000
GEZ57ES GEZ57ES-2RS 2.2500 3.5625 1.687 1.969 2.554 0.040 0.048 6 167200
GEZ63ES GEZ63ES-2RS 2.5000 3.9375 1.875 2.187 2.833 0.040 0.048 6 207300
GEZ69ES GEZ69ES-2RS 2.7500 4.3750 2.062 2.406 3.110 0.040 0.048 6 251250
GEZ76ES GEZ76ES-2RS 3.0000 4.7500 2.250 2.625 3.406 0.040 0.048 6 299200
