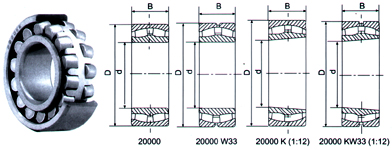

    Spherical Roller Bearings--213.. Series

Bearing No. dimensions(mm) load ratings(KN) Limiting speeds(r/min) Mounnting dimensions(mm) Mass(kg)
Cylindrical Bore d D B rsmin Cr Cor Grease Oil da(min) Da(max) ra(max)
21304CA 20 52 15 1.1 31.7 32.1 6000 7500 27 45 1 0.2
21304CTN1 20 52 15 1.1 35.8 35.2 6000 7500 27 45 1 0.2
21305CA 40 62 17 1.1 42.7 45.5 5300 6700 32 55 1 0.3
21305CTN1 40 62 17 1.1 45.5 45.8 5300 6700 32 55 1 0.3
21306CA 40 72 19 1.1 57.5 63.9 4500 6000 37 65 1 0.4
21306CTN1 40 72 19 1.1 63.8 65.4 4500 6000 37 65 1 0.4
21307CA 40 80 21 1.5 65.4 75.4 4000 5300 44 71 1.5 0.5
21307CTN1 40 80 21 1.5 74.4 77.7 4000 5300 44 71 1.5 0.5
21308CA 40 90 23 1.5 88.8 99.0 3600 4500 49 81 1.5 0.8
21308CC 40 90 23 1.5 88.8 99.0 3600 4500 49 81 1.5 0.7
21308CTN1 40 90 23 1.5 93.9 102.0 3600 4500 49 81 1.5 0.7
21309CA 45 100 25 1.5 105.7 118.4 3200 4000 54 91 1.5 1.0
21309CC 45 100 25 1.5 105.7 118.4 3200 4000 54 91 1.5 1.0
21309CTN1 45 100 25 1.5 111.2 123.6 3200 4000 54 91 1.5 0.9
21310CA 50 110 27 2.0 123.6 144.2 2800 3800 60 100 2 1.3
21310CC 50 110 27 2.0 128.7 144.2 2800 3800 60 100 2 1.3
21310CTN1 50 110 27 2.0 128.7 144.2 2800 3800 60 100 2 1.2
21311CA 55 120 29 2.0 146.3 175.1 2600 3400 65 110 2 1.7
21311CC 55 120 29 2.0 146.3 175.1 2600 3400 65 110 2 1.7
21311CTN1 55 120 29 2.0 149.3 170.0 2600 3400 65 110 2 1.6
21312CA 60 130 31 2.1 166.9 200.9 2400 3200 72 118 2.1 2.1
21312CC 60 130 31 2.1 166.9 200.9 2400 3200 72 118 2.1 2.1
21312CTN1 60 130 31 2.1 175.1 200.9 2400 3200 72 118 2.1 2.0
21313CA 65 140 33 2.1 187.5 234.8 2200 3000 77 128 2.1 2.6
21313CC 65 140 33 2.1 187.5 234.8 2200 3000 77 128 2.1 2.6
21313CTN1 65 140 33 2.1 198.0 235.0 2200 3000 77 128 2.1 2.5
21314CA 70 150 35 2.1 218.4 276.0 2000 2800 82 138 2.1 3.1
21314CC 70 150 35 2.1 218.4 276.0 2000 2800 82 138 2.1 3.1
21314CTN1 70 150 35 2.1 220.0 265.0 2000 2800 82 138 2.1 3.0
21315CA 75 160 37 2.1 245.1 311.1 1900 2600 87 148 2.1 3.8
21315CC 75 160 37 2.1 245.1 311.1 1900 2600 87 148 2.1 3.8
21315CTN1 75 160 37 2.1 245.1 311.1 1900 2600 87 148 2.1 3.6
21316CA 80 170 39 2.1 267.8 358.6 1800 2400 92 158 2.1 4.5
21316CC 80 170 39 2.1 267.8 358.6 1800 2400 92 158 2.1 4.5
21316CTN1 80 170 39 2.1 280.0 350.0 1800 2400 92 158 2.1 4.3
21317CA 85 180 41 3.0 306.9 396.6 1700 2200 99 166 2.5 5.2
21317CC 85 180 41 3.0 306.9 396.6 1700 2200 99 166 2.5 5.2
21317CTN1 85 180 41 3.0 310.0 390.0 1700 2200 99 166 2.5 5.1
21318CA 90 190 43 3.0 329.6 432.6 1600 2200 104 176 2.5 6.2
21318CC 90 190 43 3.0 329.6 432.6 1600 2200 104 176 2.5 6.2
21318CTN1 90 190 43 3.0 330.0 420.0 1600 2200 104 176 2.5 5.9
21319CA 95 200 45 3.0 365.7 499.6 1700 2200 109 186 2.5 7.2
21319CC 95 200 45 3.0 365.7 499.6 1700 2200 109 186 2.5 7.2
21319CTN1 95 200 45 3.0 365.0 499.0 1700 2200 109 186 2.5 6.9
21320CA 100 215 47 3.0 396.6 545.9 1600 2000 114 201 2.5 8.8
21320CC 100 215 47 3.0 396.6 545.9 1600 2000 114 201 2.5 8.8
21320CTN1 100 215 47 3.0 425.0 575.0 1600 2000 114 201 2.5 8.6
21321CA 105 225 49 3.0 420.0 575.0 1500 1900 119 211 2.5 10.0
21321CC 105 225 49 3.0 420.0 575.0 1500 1900 119 211 2.5 10.0
21322CA 110 240 50 3.0 460.0 635.0 1400 1800 124 226 2.5 11.8
21322CC 110 240 50 3.0 474.0 654.0 1400 1800 124 226 2.5 11.8
