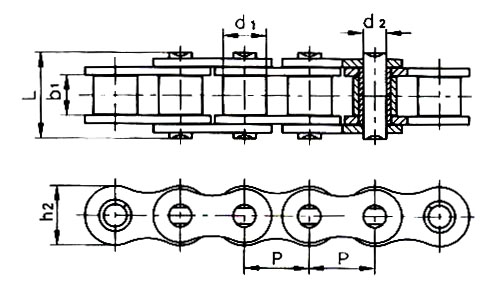

Roller chain-Automotive chains |
|
|
|
|
Chain NO. |
Pitch |
Roller
diameter |
Width
between inner plates |
Pin
diameter |
Pin
length |
Inner
plate depth |
Ultimate
tensile strength |
Average
tensile strength |
Weight
per meter |
P |
d1 max |
b1 min |
d2 max |
L
max |
h2 max |
Q
min |
Q0 |
q |
mm |
mm |
mm |
mm |
mm |
mm |
KN |
KN |
kg/m |
*25H |
6.35 |
3.30 |
3.18 |
2.31 |
8.9 |
6.0 |
4.8 |
5.2 |
0.17 |
*25-1 |
6.35 |
3.30 |
3.18 |
2.31 |
7.9 |
6.0 |
3.5 |
4.4 |
0.15 |
*25-2 |
6.35 |
3.30 |
3.18 |
2.31 |
14.5 |
6.0 |
7.0 |
8.2 |
0.28 |
*270H |
8.5 |
5.00 |
4.75 |
3.28 |
13.15 |
8.45 |
9.8 |
11.7 |
0.33 |
*35 |
9.525 |
5.08 |
4.77 |
3.58 |
12.4 |
9.0 |
7.9 |
9.8 |
0.33 |
#06AT |
9.525 |
6.35 |
3.94 |
3.28 |
10.5 |
8.2 |
8.9 |
10.0 |
0.34 |
#06BT-1 |
9.525 |
6.35 |
5.72 |
3.28 |
12.5 |
8.2 |
6.0 |
10.0 |
0.38 |
#06BT-2 |
9.525 |
6.35 |
5.72 |
3.28 |
22.9 |
8.2 |
16.9 |
17.9 |
0.73 |
|
|

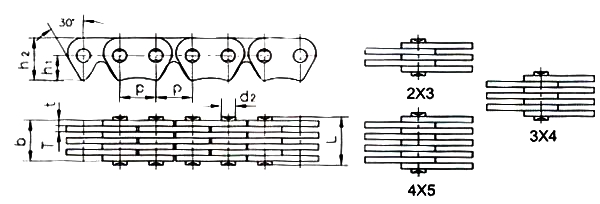

Xilin
Chain No. |
Pitch |
Chain
Width |
Pin
diameter |
Inner
Pin length |
Distance
from hole centre to tooth |
Plate
depth |
Plate
thickness |
Guide
form |
Number
of plates |
Ultimate
tensile strength |
Average
tensile strength |
Weight
per meter |
P |
d1 max |
d2 max |
L max |
h1 |
h2 max |
T/t max |
|
n |
Q min |
Q0 |
q |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
KN |
KN |
kg/m |
CL04 |
6.35 |
4.35 |
2.70 |
6.2 |
3.9 |
6.7 |
1.04/0.75 |
Outside |
5 |
5.88 |
6.6 |
0.22 |
CL04 |
6.35 |
6.35 |
2.70 |
8.3 |
3.9 |
6.7 |
1.04/0.75 |
Outside |
7 |
8.82 |
9.8 |
0.28 |
CL04 |
6.35 |
9.40 |
2.70 |
10.9 |
3.9 |
6.7 |
1.04 |
Outside |
9 |
11.76 |
13.2 |
0.35 |
|
|
|
|
