     Roller chain- short pitch precision roller chain A series

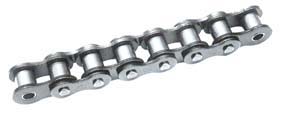

Single strand roller chains
DIN ISO Chain NO.
ANSI Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Inner plate depth
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d1 max
b1 min
d2 max
L max
Lc max
h2 max
Q min
Q0
q
mm
mm
mm
mm
mm
mm
mm
KN
KN
kg/m
*04C-1
*25
6.35
3.30
3.18
2.31
7.80
8.45
5.90
3.5
4.3
0.15
*06C-1
*35
9.525
5.08
4.77
3.58
12.15
13.1
8.95
7.9
9.8
0.33
085-1
41
12.7
7.77
6.25
3.58
13.75
15.4
9.90
6.67
11.7
0.41
08A-1
40
12.7
7.95
7.85
3.96
16.6
17.75
11.90
14.1
17.1
0.62
10A-1
50
15.875
10.16
9.40
5.08
20.90
22.2
15.09
22.2
26.4
1.02
12A-1
60
19.05
11.91
12.57
5.94
25.9
27.5
18.0
31.8
38.8
1.50
16A-1
80
25.4
15.88
15.75
7.92
32.80
34.9
24.10
56.7
64.8
2.60
20A-1
100
31.75
19.05
18.90
9.53
40.0
43.2
30.10
88.5
101.8
3.91
24A-1
120
38.1
22.23
25.22
11.10
50.45
53.4
36.10
127.0
147.1
5.62
28A-1
140
44.45
25.40
25.22
12.70
54.20
59.0
42.10
172.4
197.9
7.50
32A-1
160
50.8
28.58
31.55
14.27
64.30
69.6
48.10
226.8
260.2
10.10
36A-1
180
57.15
35.71
35.48
17.46
72.8
78.6
53.6
280.2
327.9
13.45
40A-1
200
63.5
39.68
37.85
19.85
80.3
87.2
60.0
353.8
405.0
16.15
48A-1
240
76.2
47.63
47.35
23.81
95.5
103.0
72.39
510.3
585.5
23.20

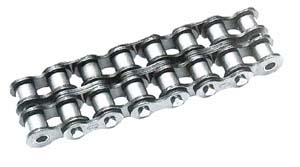

Double strand roller chains

DIN ISO Chain NO.
ANSI Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Inner plate depth
Transverse pitch
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d1 max
b1 min
d2 max
L max
Lc max
h2 max
Pt
Q min
Q0
q
mm
mm
mm
mm
mm
mm
mm
mm
KN
KN
kg/m
*04C-2
*25-2
6.35
3.30
3.18
2.31
14.5
15.15
5.90
6.40
7.0
8.3
0.28
*06C-2
*35-2
9.525
5.08
4.77
3.58
22.5
23.4
8.95
10.13
15.8
19.1
0.63
08A-2
40-2
12.7
7.95
7.85
3.96
31.1
32.25
11.90
14.38
28.2
33.7
1.12
10A-2
50-2
15.875
10.16
9.40
5.08
39.0
40.3
15.00
18.11
44.4
55.3
2.00
12A-2
60-2
19.05
11.91
12.57
5.94
48.8
50.3
18.0
22.78
63.6
83.2
2.92
16A-2
80-2
25.4
15.88
15.75
7.92
61.9
64.2
24.10
29.29
113.4
140.0
5.15
20A-2
100-2
31.75
19.05
18.90
9.53
76.2
80.5
30.10
35.76
177.0
202.8
7.80
24A-2
120-2
38.1
22.23
25.22
11.10
95.4
99.7
36.0
45.44
254.0
291.4
11.70
28A-2
140-2
44.45
25.40
25.22
12.70
103.10
107.9
42.0
48.87
344.8
295.7
15.14
32A-2
160-2
50.8
28.58
31.55
14.27
122.90
128.1
48.0
58.55
453.6
520.5
20.14
36A-2
180-2
57.15
35.71
35.48
17.46
138.6
144.4
53.6
65.84
560.5
655.7
29.22
40A-2
200-2
63.5
39.68
37.85
19.85
151.9
158.8
60.0
71.55
707.6
748.8
32.24
48A-2
240-2
76.2
47.63
47.35
23.81
183.4
190.8
72.39
87.83
1020.6
1170.6
45.23

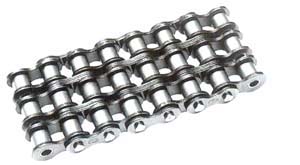

Triple strand roller chains



DIN ISO Chain NO.
ANSI Chain No.
Pitch
Roller diameter
Width between inner plates
Pin diameter
Pin length
Inner plate depth
Transverse pitch
Ultimate tensile strength
Average tensile strength
Weight per meter
P
d1 max
b1 min
d2 max
L max
Lc max
h2 max
Pt
Q min
Q0
q
mm
mm
mm
mm
mm
mm
mm
mm
KN
KN
kg/m
*06C-3
*35-3
9.525
5.08
4.77
3.58
32.8
33.7
8.9
10.13
23.7
28.7
1.05
08A-3
40-3
12.7
7.95
7.85
3.96
45.6
47.0
11.9
14.38
42.3
50.1
1.90
10A-3
50-3
15.875
10.16
9.40
5.08
57.40
59.1
15.0
18.11
66.6
77.8
3.09
12A-3
60-3
19.05
11.91
12.57
5.94
71.5
73.2
18.0
22.78
95.4
111.1
4.54
16A-3
80-3
25.4
15.88
15.75
7.92
91.60
93.3
24.10
29.29
170.1
198.4
7.89
20A-3
100-3
31.75
19.05
18.90
9.53
111.6
116.3
30.00
35.76
265.5
309.5
11.77
24A-3
120-3
38.1
22.23
25.22
11.10
141.0
145.2
36.0
45.44
381.0
437.2
17.53
28A-3
140-3
44.45
25.40
25.22
12.70
151.80
156.8
42.0
48.87
517.2
593.1
22.20
32A-3
160-3
50.8
28.58
31.55
14.27
181.40
186.6
48.0
58.55
680.4
780.6
30.02
36A-3
180-3
57.15
35.71
35.48
17.46
204.4
210.2
53.6
65.84
840.7
983.8
38.22
40A-3
200-3
63.5
39.68
37.85
19.85
223.5
230.4
60.0
71.55
1061.4
1217.8
49.03
48A-3
240-3
76.2
47.63
47.35
23.81
271.3
278.6
72.39
87.83
1530.9
1756.6
71.60
